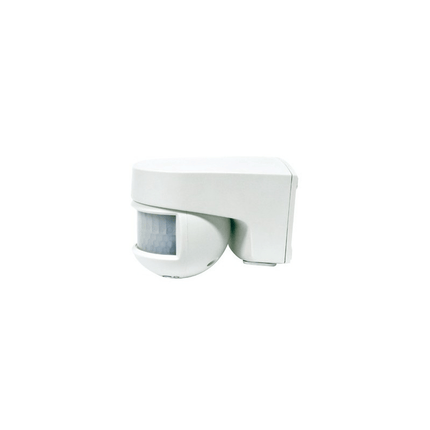

Motion Detector for surface mounting on wall.

Protection IP 55 against ingress of dust and water jets according to en 60529.

Parameters adjustable: timing and sensitivity to light.

Limiter field of recruitment included, allows you to override the detection in specific areas within the catchment area.

Available upon request ISIMAT + in black color.

Head rotation detector to be routed towards the catchment area.

Power Supply: 230 Va.c., 50 Hz

Power break: 5 To 230 Va.c.

Timing: from 3s to 30 min.

Light sensitivity: adjustable 5-2.000 lux

Temp. operating: -20 ºC to +40 ºC

Degree of protection: IP 55 according to en 60529

Angle of detection: 200 °

Detection field frontal: 12 m at 20ºC

Field of detection, lateral: 8 m at 20ºC
